easyRemote Display Apk V1.01

Smartphone access to easy800 - as if working on the control relay itself

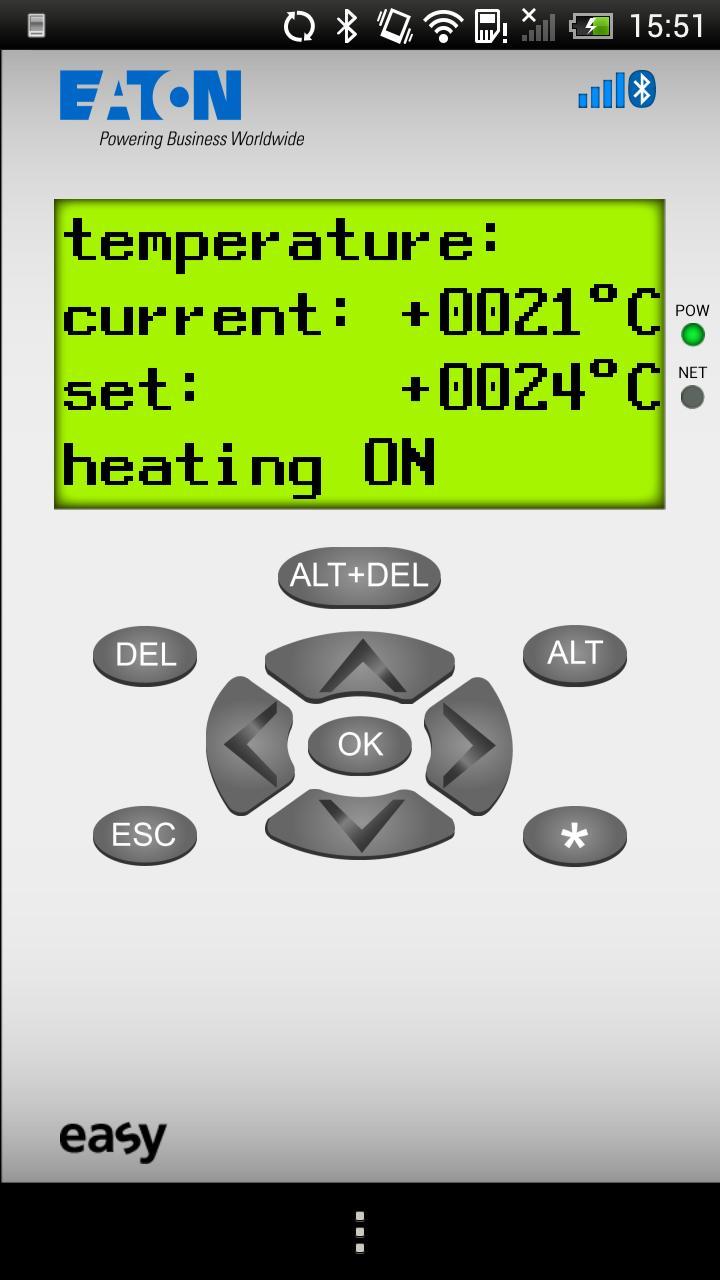

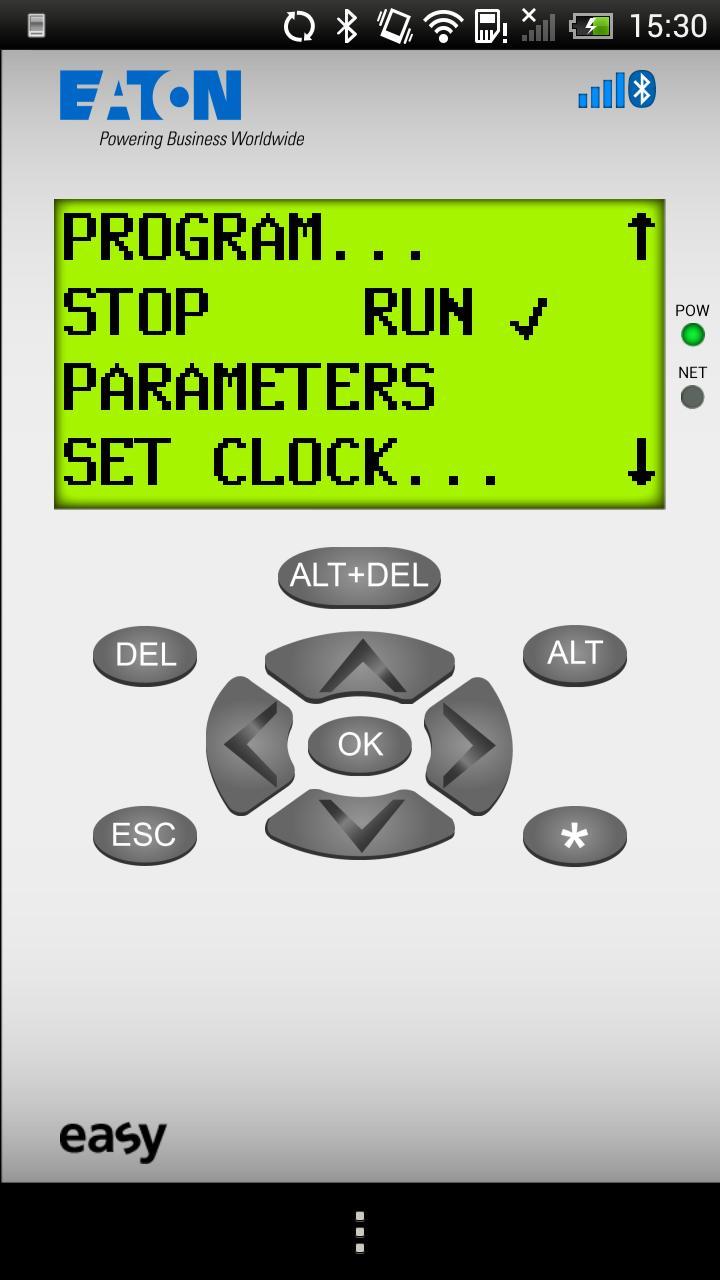

The easyRemote Display App provides simple and fast remote access via Bluetooth to control relay easy800 with a smartphone. Users can view text and values, change parameters, check and edit the circuit diagram, set the date and time and change the operating mode. The easyRemote Display App runs on smartphones with Android Version 2.2 or higher.

• Modern communication with easy800 through mobile smartphone access to the

control relay at a distance of up to 10 meters

• Proteção contra acesso não autorizado ao relé de controle através da conexão Bluetooth segura por meio de um pino exclusivo de 8 dígitos e, além disso, opcionalmente através da senha do dispositivo do Easy800

• Com o aplicativo easyRemote Display : indicação de falha, entrada do valor do ponto de ajuste, data e hora de definir, inserir a senha do dispositivo, alterar o modo de operação, verificar os estados de entradas e saídas, editar o diagrama de circuitos, etc.

• Acesso conveniente a todas as funções de exibição e operação disponíveis do Easy800 de um smartphone, como se estivessem trabalhando no próprio relé de controle

• Especialmente adequado para instaladores, pessoal de manutenção, engenheiros de serviço, operadores de máquinas e clientes finais que exigem acesso rápido e direcionado ao seu Easy800

• Efficient monitoring of several machines with only a single visualization device

• Color scheme of the easyRemote Display App with adjustable contrast for good readability in sunshine or bright lighting

• Can be used only in combination with Bluetooth adapter EASY800-BLT-ADP and a smartphone with Android version 2.2 or higher

• easyRemote Display App can be operated in the following languages: English, German, Italian, Spanish, French, Polish, Dutch

Como funciona? – simply easy

• Download easyRemote Display App to your Android phone from Google Play and install

• Connect Bluetooth adapter EASY800-BLT-ADP to the programming port of your easy800

• Activate the Bluetooth interface on your smartphone

• Start the easyRemote Display App and search for available Bluetooth devices

• Enter the Bluetooth adapter's 8-digit PIN to establish a secure Bluetooth connection (pairing)

• Through the connected Bluetooth adapter connect to the easy800, view display contents and operate the control relay

What's New in the Latest Version V1.01

Last updated on Aug 26, 2015 In the Easy Remote Display app the connection has been improved with the easy800 BLT ADP Bluetooth adapter. Incompatibilities with some Android devices have been fixed.

Starting with version 04 of the easy800 BLT ADP pairing functions without PIN code. Once the Bluetooth adapter gets supply voltage it can couple (pair) for 1 minute to an Android device. If the pairing is carried out successfully the Remote Display app can be used.
