DTCO Configuration Apk 1.0.5

Configuration of the DTCO® 3.0 via Smart Link

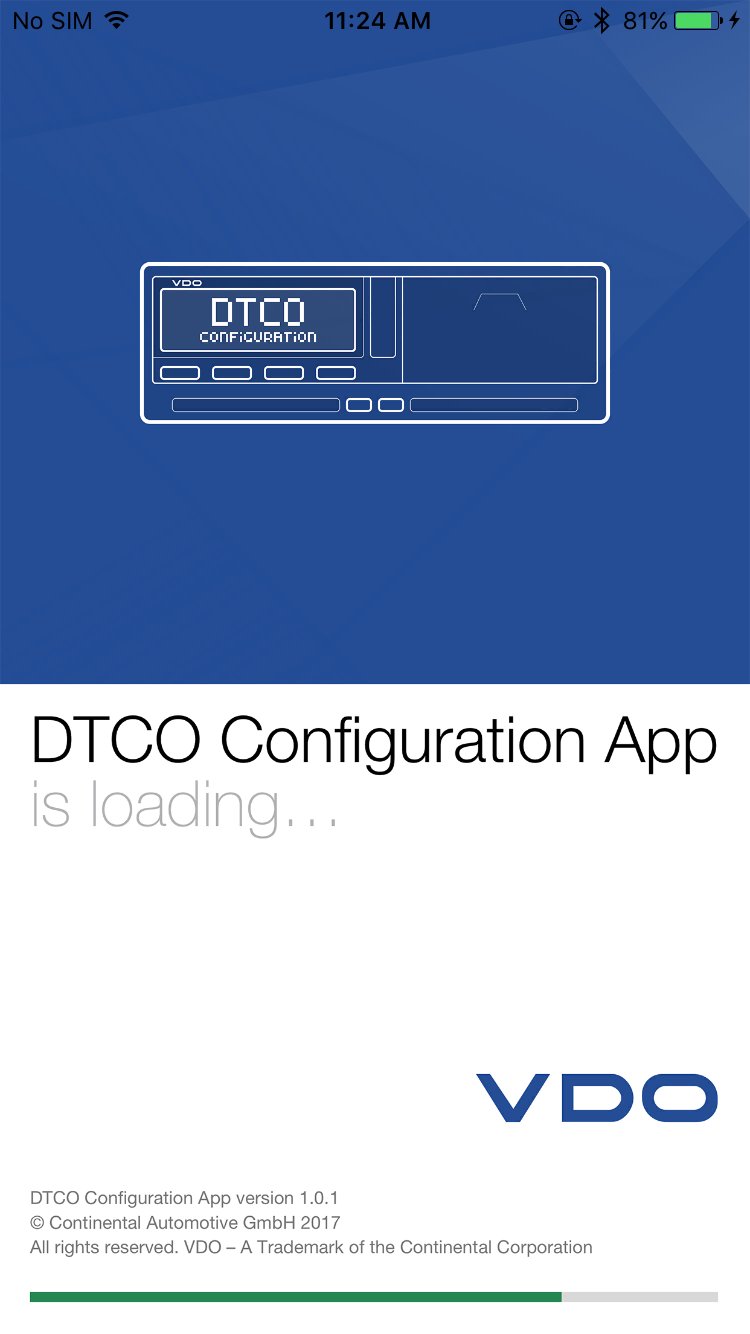

DTCO Configuration App is designed for Fleet Managers to configure the DTCO® 3.0 using their Company Card. With a Bluetooth connection via Smart Link multiple parameters can easily be configured inside the tachograph. This is a great advantage compared to former DTCO versions where such changes could be done only by workshop.

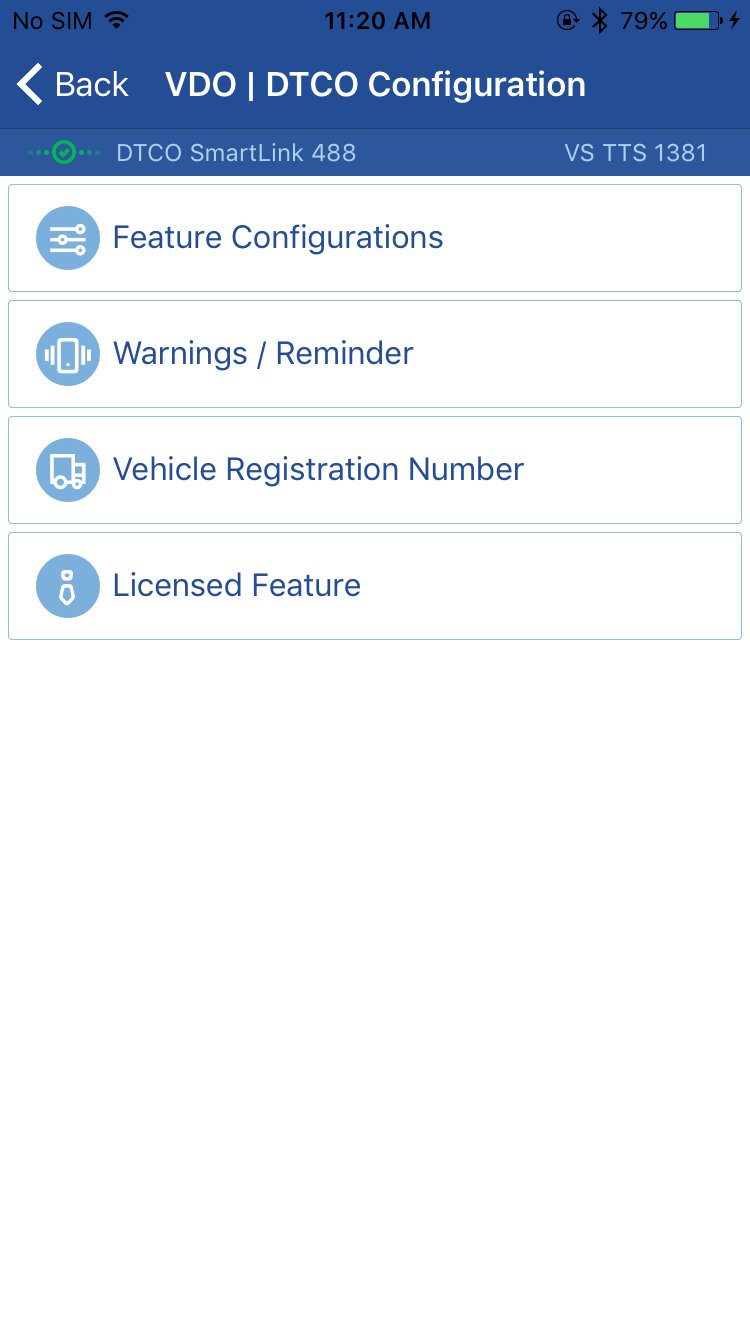

The following configurations are possible:

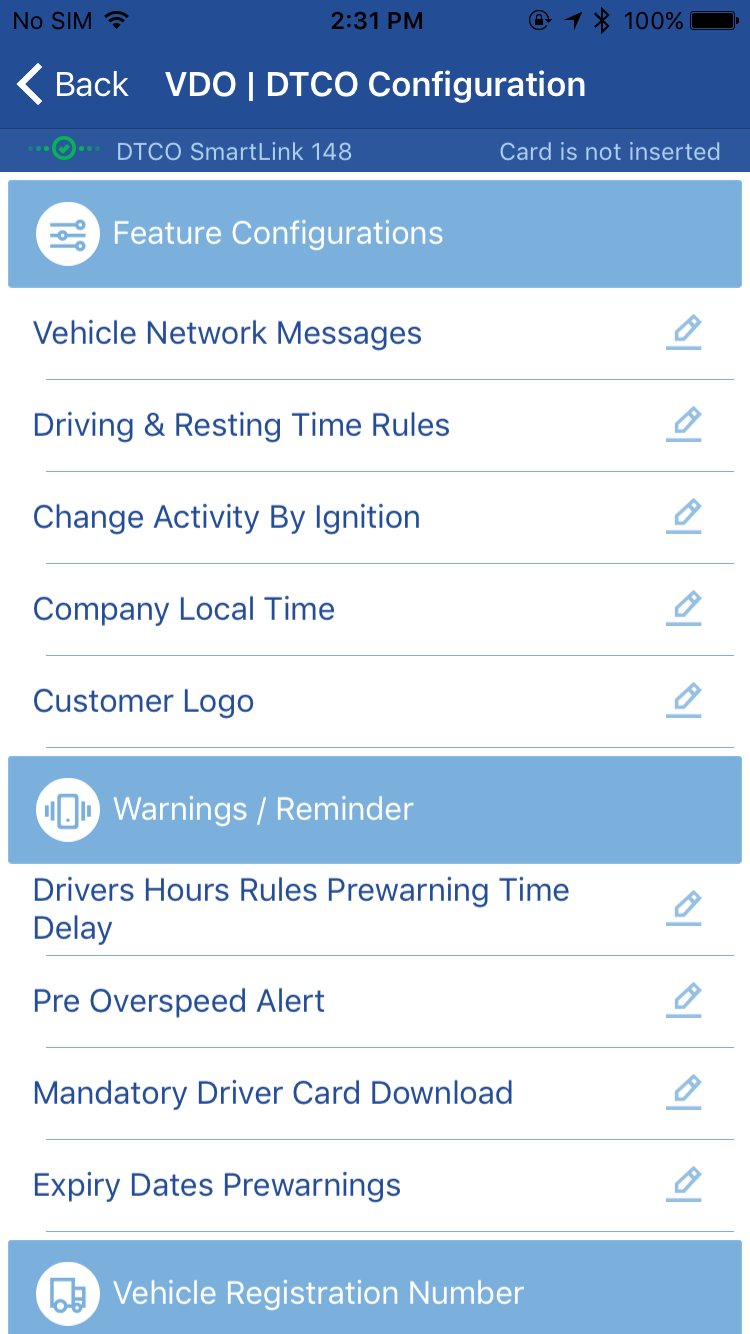

Feature Configurations

Change Activity by Ignition

Set the activity for driver and co-driver when the ignition is on or off. Choose between BreakOrRest, Work, Availability and NoActivity.

Driving & Resting Time Rules

Choose to enable the calculation of the weekly rest periods and the consideration of availability as a driving interruption.

Company Local Time

Set the company local time.

Vehicle Network Messages

Configure up to 8 CAN Parameters, stored inside DTCO for further evaluation of vehicle and driver data.

Customer Logo

Choose your company logo and upload it to the DTCO, to be shown on the printout.

Warnings / Reminder

Drivers Hours Rules Prewarning Time Delay

Set a prewarning time, to inform driver before his driving time limit is reached.

Pre Overspeed Alert

Enable an additional alert that occurs before the actual overspeed alert is occurring and avoid any infringement.

Mandatory Driver Card Download

Define prewarning times and time periods between Mandatory Driver Card Downloads.

Expiry Dates Prewarnings

Define prewarning times for Driver Card Expiry, Company Card Expiry and Periodic Inspections.

Vehicle Registration Number

Vehicle Registration Number

Choose the registering member state and set a vehicle registration number. (Only for initial registration)

Licensed Feature

VDO License Features

Enter your license code to enable certain features.

Pre-requisites for the Configurations:

- DTCO® Smart Link

- Digital Tachograph (DTCO®) VDO from Version 3.0

- Company Card

What's New in the Latest Version 1.0.5
